Variable frequency drives (VFDs)—also known as variable speed drives (VSDs), frequency inverters, or adjustable speed drives—are everywhere. These critical components are used to regulate motor speed in industrial equipment such as pumps, fans, conveyors, and compressors. But as essential as VFDs are, troubleshooting them can be complex, time-consuming, and require a combination of multiple tools and deep expertise.

Meet the Fluke MDA-550: One Tool to Rule Them All

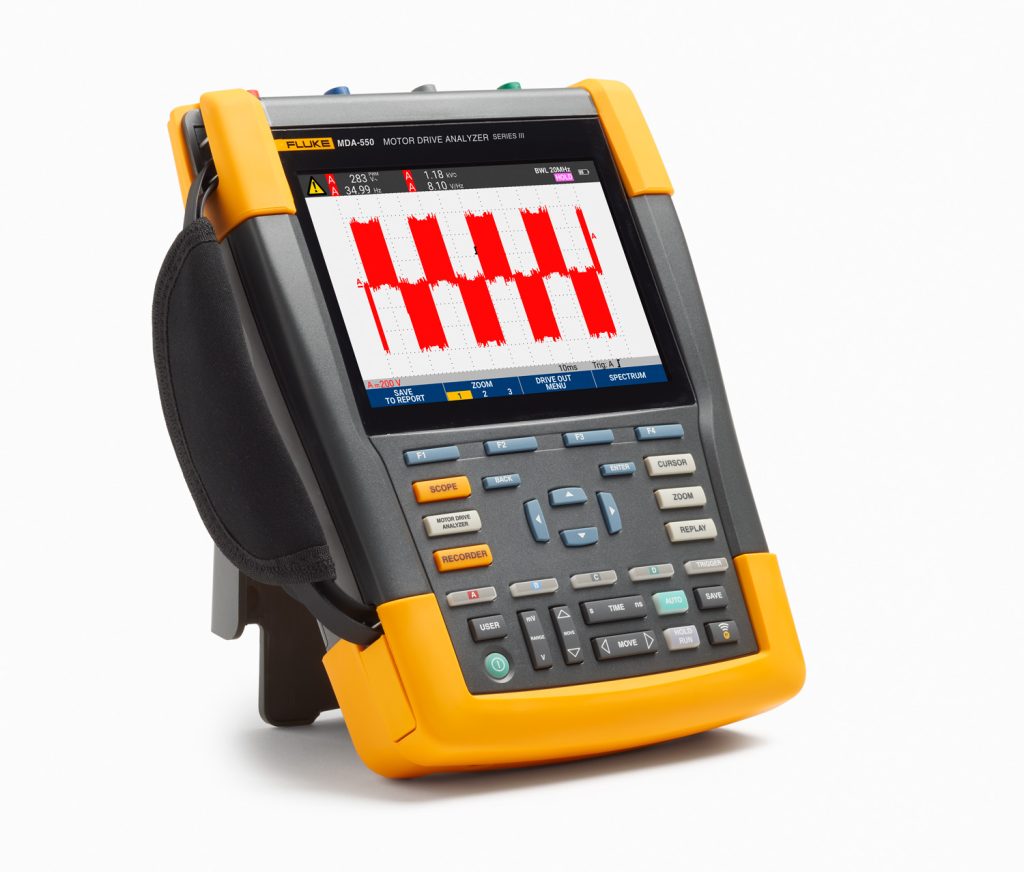

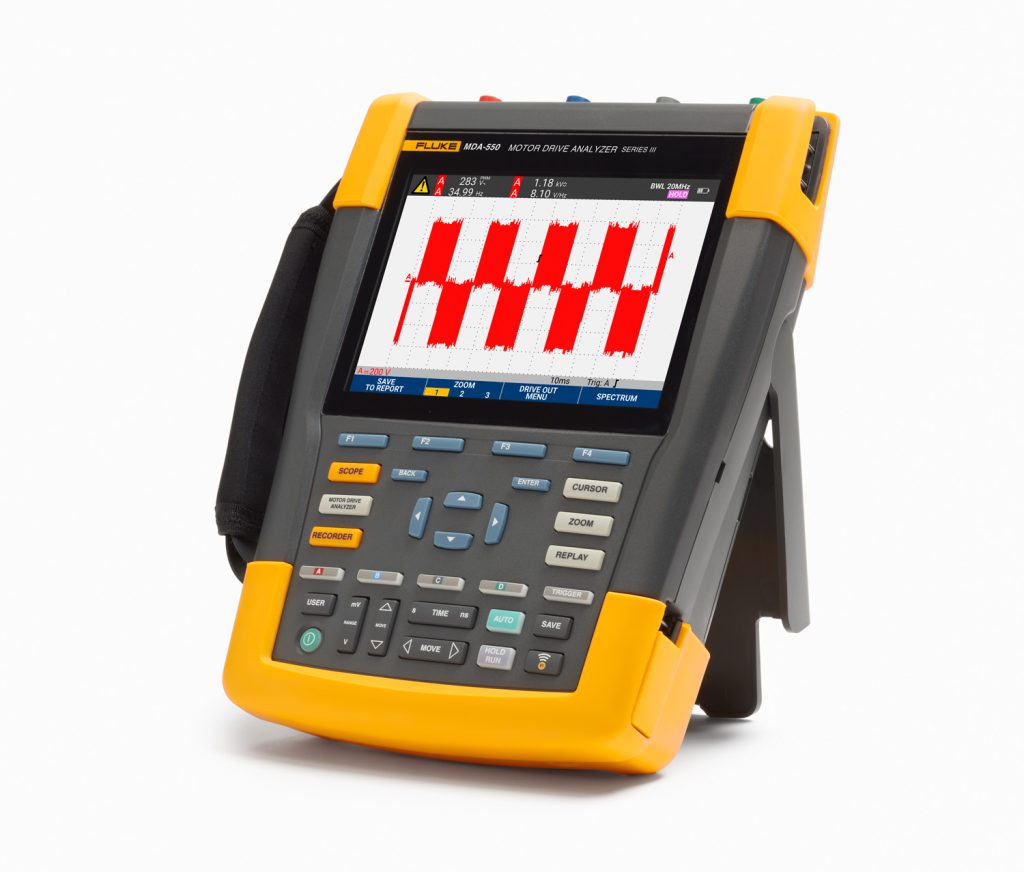

The Fluke MDA-550 Motor Drive Analyzer is designed to eliminate the hassle of VFD troubleshooting by integrating guided testing, automated configurations, and a comprehensive range of measurements in a single instrument. Whether you’re conducting performance analysis, diagnosing faults, or ensuring system integrity, the MDA-550 simplifies every step.

“You could use an oscilloscope to view waveforms and a discharge analyzer to detect bearing wear—but the MDA-550 does both in one.”
— Project Manager, Danfoss Drives

Built for Efficiency and Insight

Fluke collaborated with Danfoss, one of the world’s leading drive manufacturers, to validate the capabilities of the MDA-550. According to Norbert Hanigovszki, Project Manager at Danfoss Drives:

“Traditionally, when you go on-site for a maintenance call, you’re unsure where to start. You might carry a multimeter, an oscilloscope, and a power quality analyzer. On top of that, you’d need years of field experience. The MDA-550 changes that. One tool, one solution.”

With the MDA-550, even less-experienced technicians can follow guided test sequences for:

• ✅ VFD Input
• ✅ DC Bus Ripple
• ✅ VFD Output
• ✅ Motor Input
• ✅ Shaft Voltage and Bearing Discharge

Just select the test type, and the device walks you through the wiring and setup with clear diagrams and on-screen instructions.

Advanced Shaft Voltage Testing – Identify Bearing Damage Early

One of the standout features of the MDA-550 is its motor shaft voltage measurement capability, allowing technicians to detect harmful bearing discharges that often go unnoticed until damage has occurred.

• 🛠️ Specialized probe connects to the rotating shaft using a carbon brush
• 📉 Detect both the amplitude and frequency of discharge events
• 🔍 View waveform shapes to classify electrical bearing damage risk

“It’s not just about how big the discharge is—but how often it happens. The MDA-550 lets us quantify both, giving us actionable insights before it’s too late.”
— Norbert Hanigovszki

Harmonic Analysis for Power Quality Insight

VFDs can introduce harmonic distortion into electrical systems, potentially impacting sensitive equipment or violating utility regulations. The MDA-550 includes harmonic measurement at the VFD input, enabling:

• 📊 Real-time detection of power quality issues
• 🌐 Evaluation of how VFDs affect the electrical grid
• 🧠 Better decisions on filter usage or power conditioning

“With MDA-550, you know if the drive is overloading the grid with harmonics—and you can take action before it affects your plant.”

Data Storage, Replay & Reporting – Document Like a Pro

Troubleshooting doesn’t end with fixing the problem—you need to document it. The MDA-550 includes:

• 🖥️ Storage for up to 100 screens and 999 images
• 🎥 Real-time waveform replay to capture transient faults
• 📝 Built-in report generation for pre- and post-maintenance analysis

“Sometimes you see a glitch, and it’s gone. With replay, you go back in time and capture what happened—it’s a lifesaver.”

Why Choose the Fluke MDA-550?

🔧 All-in-One Tool: Replace multiple instruments with a single compact unit
📚 Guided Testing: Built-in workflows reduce error and training time
🧲 Safety: Minimize risk when testing live or rotating equipment
📈 Insightful Analysis: Understand system health, prevent failures, and plan proactive maintenance
🗂️ Professional Reporting: Create data-backed maintenance records in minutes

🚀 Ready to Diagnose Faster and Extend Motor Life?

The Fluke MDA-550 is the most powerful, easy-to-use solution for motor drive analysis in industrial environments. Whether you’re working with HVAC systems, manufacturing lines, or critical utilities, this tool helps you save time, avoid costly downtime, and maximize equipment life.
