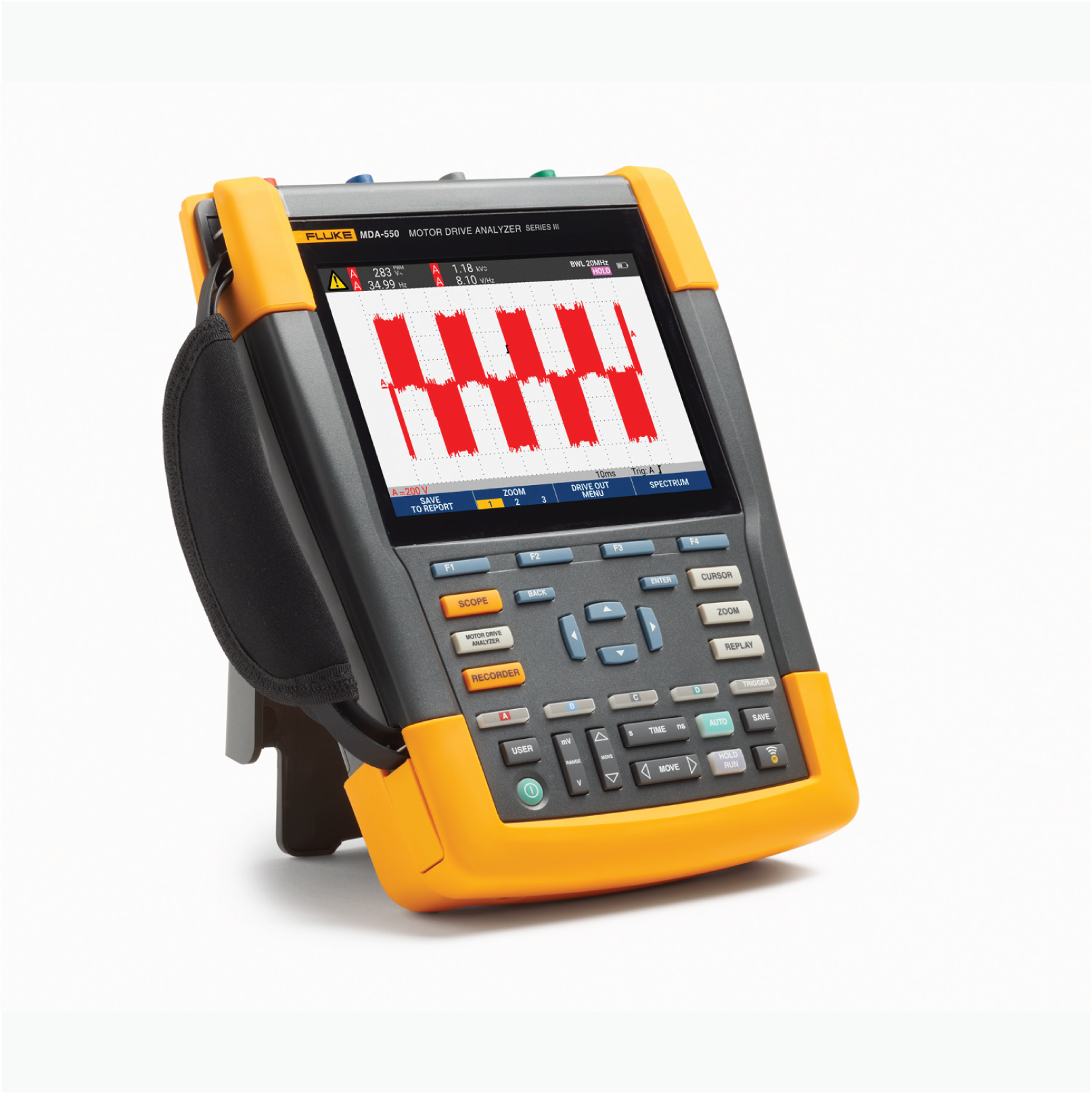

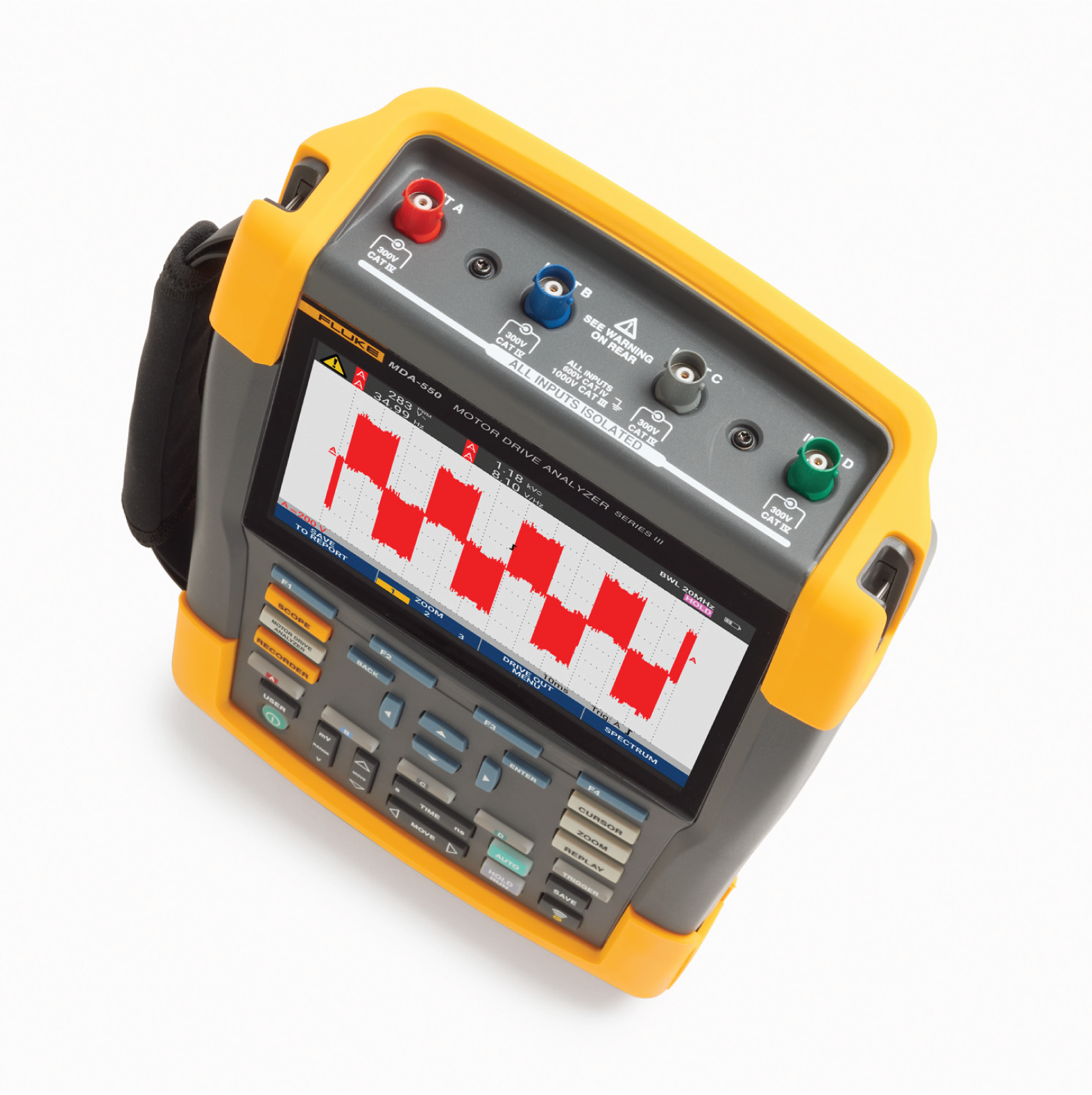

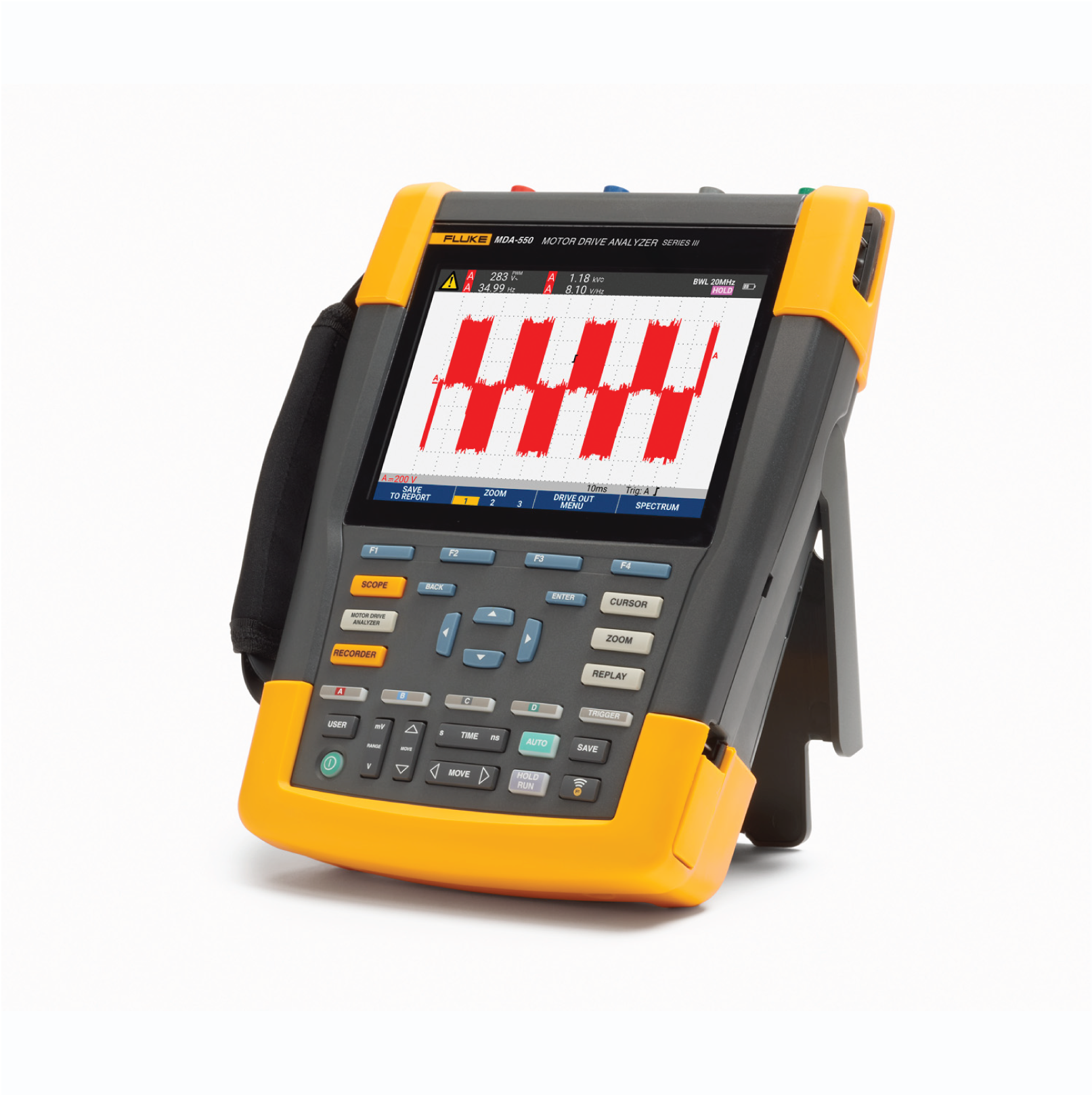

🛠️ Key Features of Fluke MDA-550 Motor Drive Analyzer

🔧 Guided VFD Testing from Input to Motor

• Step-by-step instructions with graphical diagrams for voltage and current connections

• Preset measurement profiles ensure accurate, repeatable results

⚡ Analyze Voltage, Current, and Harmonics

• Measure input/output voltage, current, and unbalance

• Detect harmonic distortion and frequency spectrum issues up to 150 kHz

📊 Extended Harmonics Measurements

• Identify low- and high-frequency harmonics (1st to 51st order, 1–9 kHz, 9–150 kHz)

• Evaluate harmonic pollution from switching electronics

🔋 DC Bus Performance Monitoring

• Measure DC voltage and AC ripple to detect failed capacitors or undersized motors

• Use recording mode to observe dynamic performance under load

📏 Output and Modulation Analysis

• Evaluate voltage-to-frequency (V/F) ratio to prevent overheating or torque loss

• Measure dV/dt to assess insulation stress and switching frequency stability

⚙️ Full 500 MHz Oscilloscope Functionality

• Perform advanced waveform analysis and record electrical/electronic signals

• Includes meter and long-term data recording features

💡 Built-In Report Generator

• Quickly generate pre- and post-maintenance reports for documentation and collaboration

🔍 Specific Testing Capabilities

Drive Input

• Compare rated vs. actual voltage

• Check current levels and cable sizing

• Analyze waveform shape and harmonic spectrum

Voltage & Current Unbalance

• Confirm phase rotation and assess phase imbalance > 6–8%

• Identify drive rectifier issues via current imbalance

Motor Shaft Voltage

• Detect shaft voltage discharges that may lead to bearing damage

• Prevent insulation failure and extend motor life

Drive Output

• Assess V/F ratio to prevent motor underperformance or overheating

• Analyze modulation to identify dangerous voltage peaks

✅ Call to Action (CTA):

🚀 Get reliable VFD diagnostics with the Fluke MDA-550—engineered for technicians who demand precision and speed. Contact us today for a demo!
