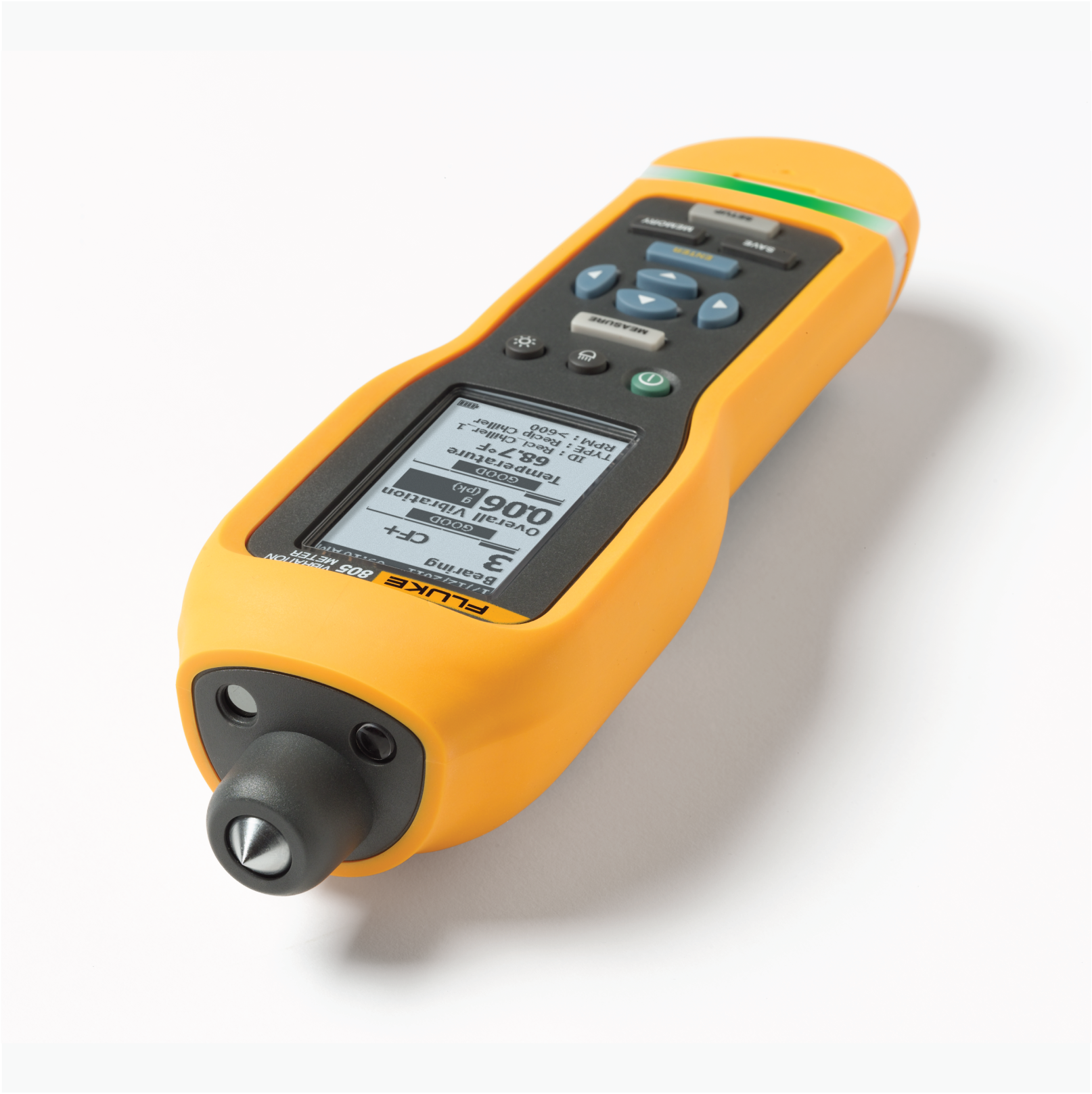

Fluke 805 Vibration Meter – Reliable Vibration and Bearing Diagnostics

The Fluke 805 Vibration Meter is more than a vibration pen—it’s a complete vibration screening device that delivers consistent, severity-scaled data for both overall machine health and bearing diagnostics. Built for frontline teams, it empowers quick, confident maintenance decisions with its intuitive design and comprehensive measurements.

⚙️ Key Features:

• 🛠️ Reliable and repeatable readings for both overall vibration and bearing condition

• 📏 Innovative sensor design minimizes errors from contact pressure or device angle

• 📊 Four-level severity scale with on-screen alerts: Good, Satisfactory, Unsatisfactory, Unacceptable

• 🧠 Crest Factor+ technology ensures accurate bearing analysis (4,000–20,000 Hz)

• 🔊 Measures overall vibration (10–1,000 Hz) for acceleration, velocity, and displacement

• 💡 Built-in Spot IR sensor measures surface temperature for enhanced diagnostics

• 💾 Stores up to 3,500 readings in onboard memory

• 💻 USB export & Excel trend analysis with pre-built templates

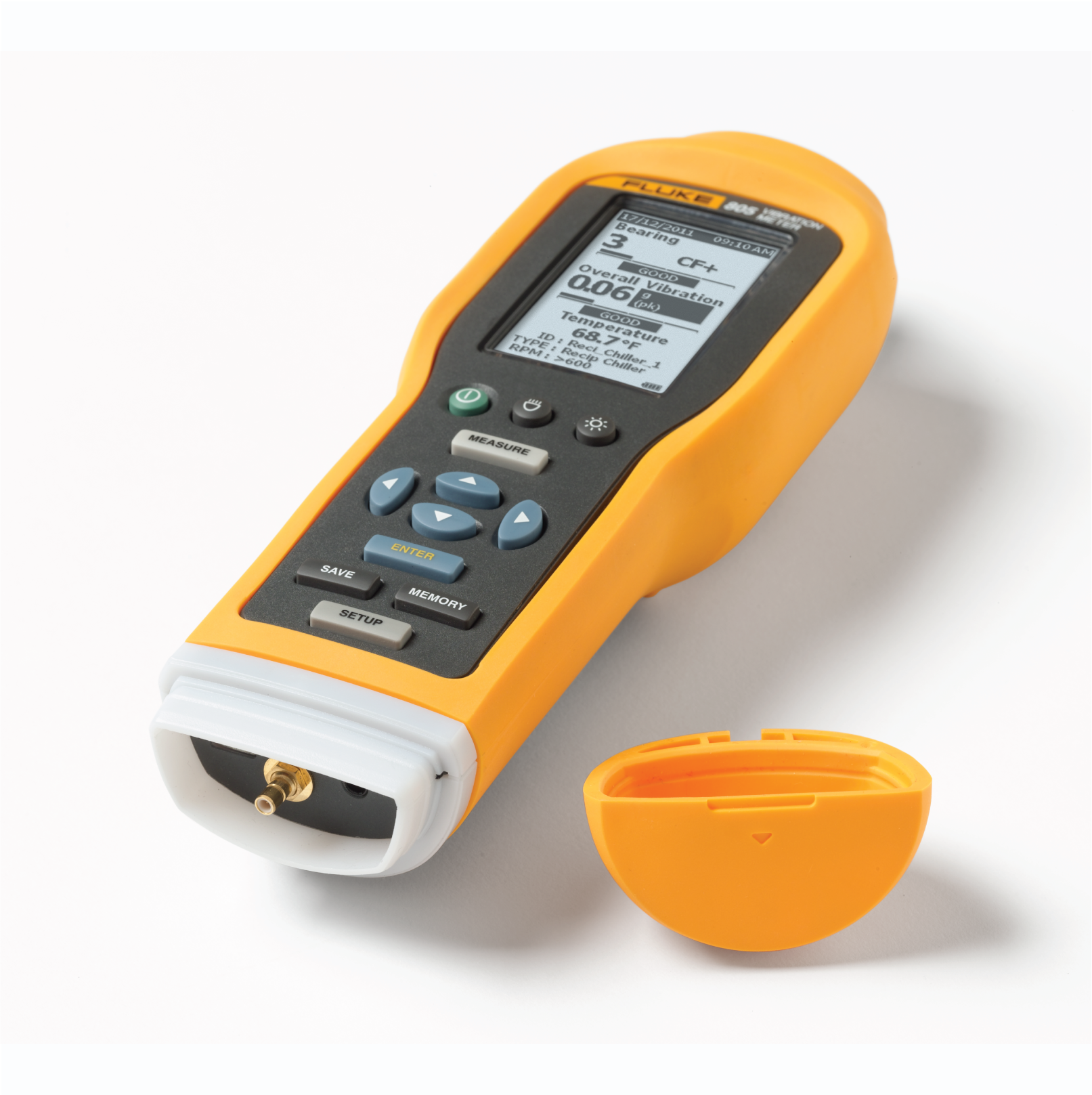

• 🔋 External accelerometer support for hard-to-reach locations

• 🔊 Audio output lets you listen to bearing tones directly

• 🔦 Integrated LED flashlight for working in dark environments

• 📺 Large high-resolution display for easy navigation and visibility

• 📘 Simple interface – just select RPM range and equipment type

🛠️ Compare with ISO 10816 standards to assess vibration severity with confidence.
