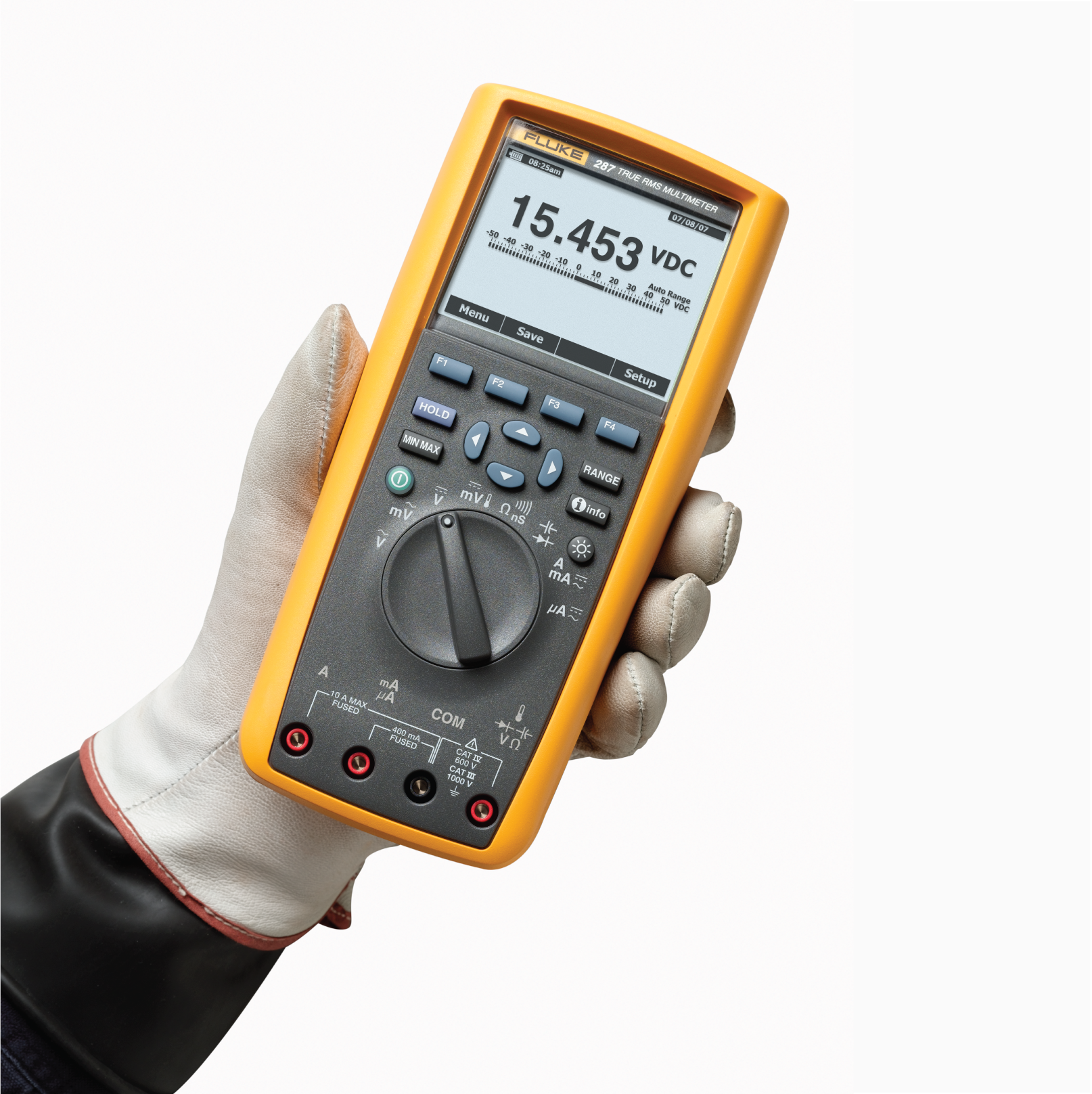

Fluke 287 True-RMS Electronics Logging Multimeter

Now Compatible with Fluke Connect® Mobile App

The Fluke 287 True-RMS Electronics Logging Multimeter with TrendCapture™ is designed for professionals who demand precision, insight, and advanced data logging in electronic troubleshooting and design applications.

With its new Fluke Connect® compatibility, the Fluke 287 allows you to remotely monitor measurements and collaborate in real-time using the optional ir3000 FC infrared connector (sold separately). ShareLive™ video calling lets your team see exactly what you see—instantly.

🔍 Advanced Logging and Graphing – No PC Required

• TrendCapture™ quickly displays logged data in a graphical format—no need to transfer to a PC.

• Zoom on Trend enables deep analysis with up to 14x zoom for detailed data inspection.

• Adjustable recording & auto-hold thresholds allow you to specify the percentage change that triggers a new event log.

• Selectable AC filter (smoothing mode) stabilizes readings from noisy or fluctuating signals.

📊 Powerful Display and Memory

• Large 1/4 VGA 50,000-count display with white backlight shows multiple measurement parameters at once.

• Expanded logging memory stores up to 15,000 recorded events across multiple sessions without needing to download.

• Real-time clock automatically time-stamps logged data.

• Onboard help screens and multi-lingual interface support intuitive operation in the field.

⚡ Unmatched Accuracy and Versatility

• 0.025% basic DC accuracy for precise measurements.

• True-RMS AC voltage and current readings ensure accuracy on complex, non-linear signals (up to 100 kHz AC bandwidth).

• Measures up to 10 A (20 A for 30 seconds).

• Capacitance range up to 100 mF.

• Built-in temperature measurement function.

• Relative mode to subtract lead resistance from low-ohm readings.

• Peak capture records transients as fast as 250 μs.

🧰 Included Accessories & Expandable Options

• Comes with premium test leads, alligator clips, and amp jack plugs.

• Optional FlukeView® Forms software lets you document, analyze, and present measurement data professionally.

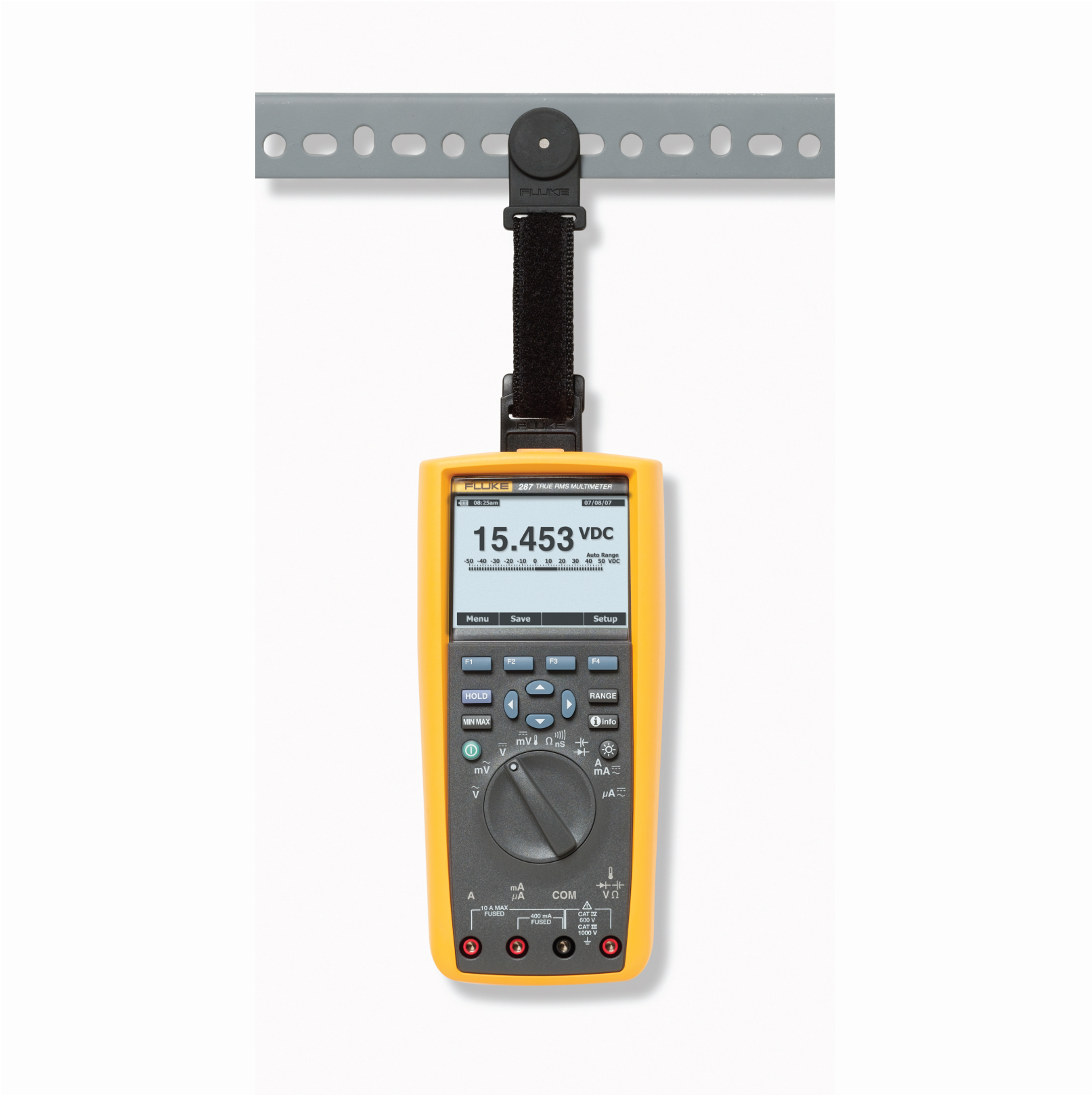

• Optional magnetic hanger for hands-free viewing in any workspace.

🛡️ Engineered for Reliability

• Backed by a limited lifetime warranty.

• Built to meet CAT III 1000V / CAT IV 600V safety standards.

The Fluke 287 is the ultimate handheld multimeter for engineers, technicians, and professionals who require accurate logging, real-time data visualization, and enhanced connectivity in high-performance environments.
