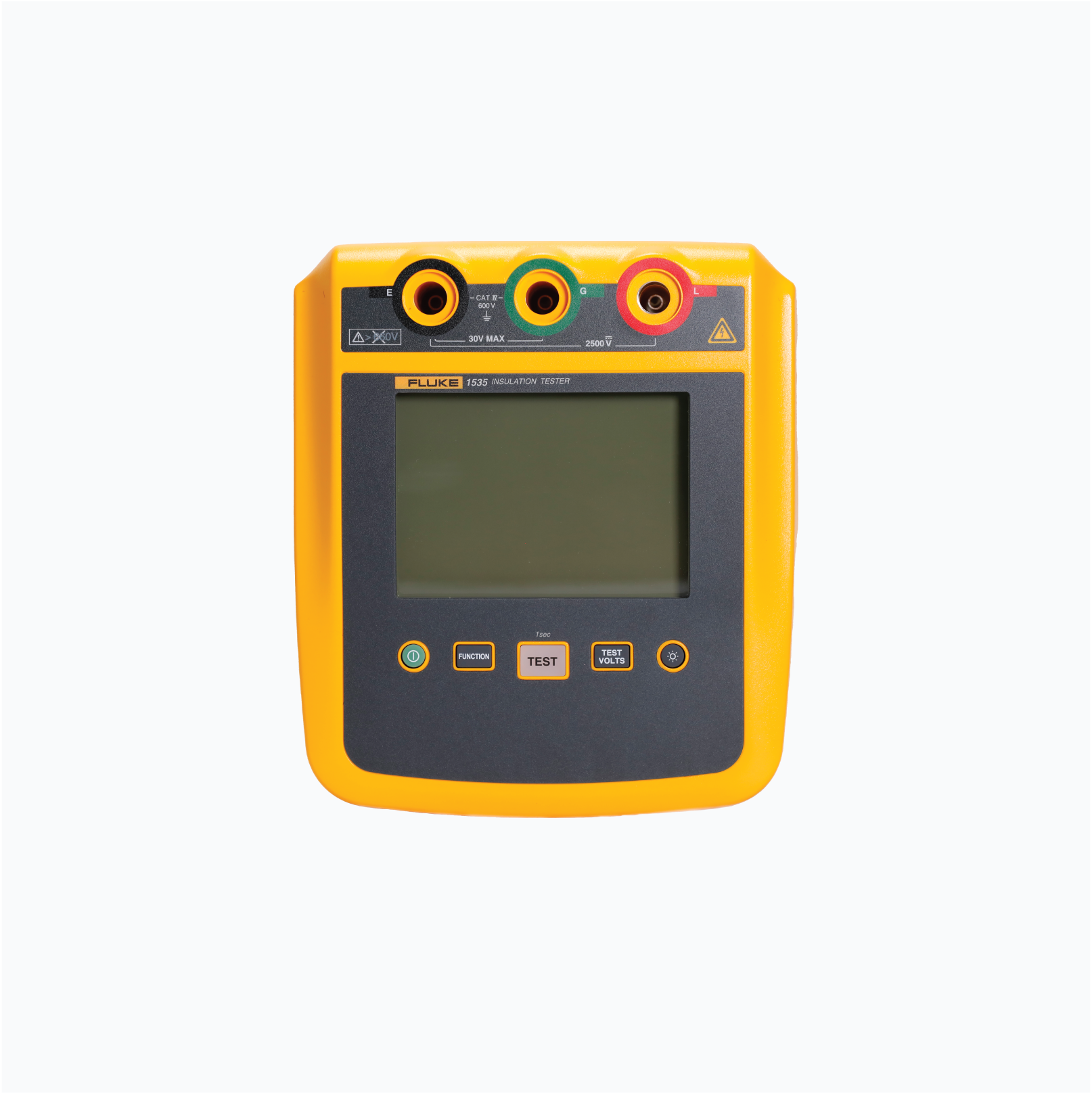

⚡ Fluke 1535 and 1537 – High-Voltage Insulation Resistance Testers for Industrial and Solar Applications

🛠️ Reliable, Flexible, and Efficient Testing

• 📏 Selectable test voltages: 250 V, 500 V, 1000 V, 2500 V

• ⚡ Insulation resistance measurement up to 500 GΩ

• 💪 Short circuit current up to 5 mA for fast, stable readings

🧠 Smart Diagnostics with Built-in Calculations

• 🔍 Auto PI (Polarization Index) & DAR (Dielectric Absorption Ratio) calculation

• 📊 Up to 1,300 tests per charge at 2500 V or 6,500 tests at 250 V

• 🛡️ CAT IV 600 V rated with voltage presence alert

📈 Fluke 1537 – Enhanced Capabilities for Advanced Testing

🛠️ Extra Features for Pro-Level Performance

• Measures AC/DC voltage and resistance in addition to insulation resistance

• Adjustable test voltage in 100 V increments (250 V to 2500 V)

• Dielectric Discharge (DD) rate calculation for hidden faults

• Ramp test mode: voltage ramped at 100 V/s to detect difficult insulation issues

🔊 Stay Focused with Visual & Audible Indicators

• Visual on-screen and audible continuity indication

• Customizable test labels, durations, and data storage

• 💻 PC connectivity and software for easy data download and management

• 🛡️ Includes extended 3-year warranty for added peace of mind

👉 Need fast, accurate insulation resistance testing with enhanced safety and data handling? Contact us now for a quote on Fluke 1535 or 1537!
